High-Power Laser mirrors

High-Power laser mirrors

The High-Power laser mirrors from Pleiger Laseroptik convince with outstanding quality and are used in deflection units as well as for beam shaping. We manufacture quickly, tailor-made and with the highest quality standards.

Laser mirrors from Pleiger Laseroptik offer you the following advantages:

Maximum reflection
Use of precise, polished materials
Can be used for a wide range of laser applications
Increased reflection due to dielectric layers
Various standards specifications available
Excellent product quality
Modern production technology
Manufactoring according to individual customer requirements

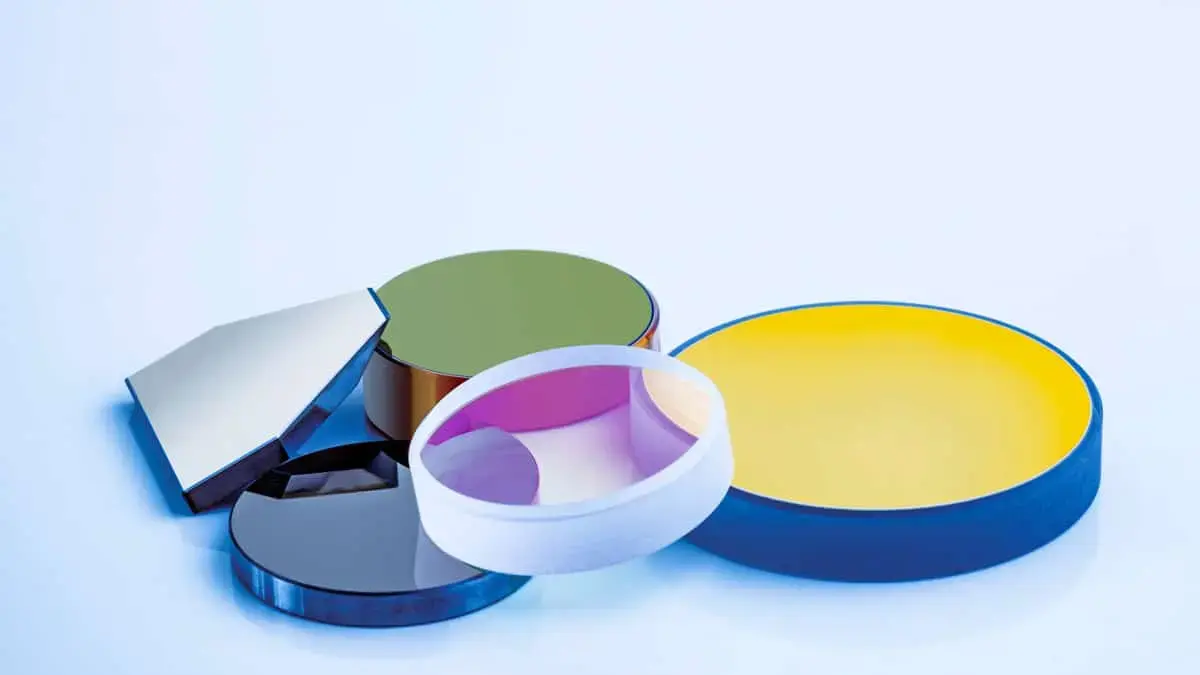

Laser mirrors for YAG and fiber lasers are used in deflection units as well as for beam shaping. We manufacture optical mirrors from silicon, copper, beryllium and silicon carbide.

Aluminum mirrors can be provided with structures on the back that enable weight reduction. They are therefore perfect for the production of lightweight optics.

Choose between the different laser mirrors the suitable product for your special application:

Silicon mirrors
Aluminum mirrors
Beryllium and silicon carbide mirrors

Silicon mirrors for scanning systems are characterized by high dynamic strength at low material costs. Including our high-performance High-Power coatings, we manufacture laser mirrors designed for the harsh conditions in industrial environments.

Beryllium and silicon carbide mirrors offer the highest performance for scanning systems in terms of mechanical and dynamic properties. In combination with the High-Power coatings, the highest scanning speeds are realized in this way. These CO2 laser mirrors are ideally suited for industrial production, for example for marking.

Silicon mirrors

Lightweight silicon mirrors are used for laser scanning and laser cutting.

R > 99.9 % @ AOI 45° s-pole

R > 99.9 % @ AOI 45° p-pole

plano, spherical, cylindrical

Quartz mirrors

High-Power laser optics made of quartz glass are the preferred choice for laser scanning systems.

Copper mirrors

Copper mirrors are the ideal choice when you need the highest laser powers. They can be used for a wide variety of applications due to the high thermal conductivity of copper and the possibility of integrating cooling lines into the mirror. Both laser cutting and laser welding are easily possible with these laser mirrors. Copper mirrors as total reflectors for laser cutting offer highest reflection with excellent cooling possibilities with an internal or an external water cooling. You can choose between plano, spherical, aspherical, parabolic and toroidal variants. We manufacture dielectric mirrors as well as laser mirrors with metallic coatings for demanding applications with the highest quality standards. Our in-house development department works out customized components as quickly as possible.

R > 99.9 % @ AOI 45° s-pole

R > 99.9 % @ AOI 45° p-pole

plano, spherical, aspherical, parabolic, toroidal

Other optical components

Parabolic mirrors

Concave mirror

High-power CO2 laser mirror
