Suprasil / Infrasil

Suprasil / Infrasil

Materials for high-end applications

Quartz glass for precision optics

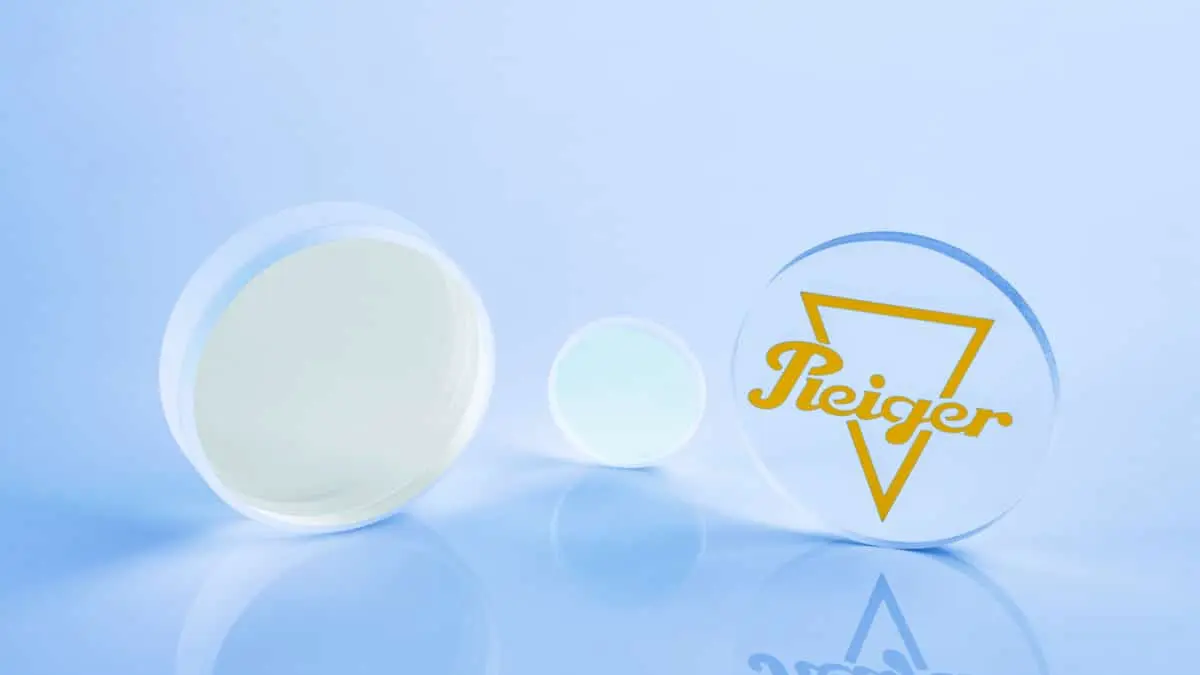

Infrasil and Suprasil quartz glass combine excellent physical and optical properties. While Suprasil quartz is produced by flame hydrolysis, Infrasil is natural quartz glass. Lenses, windows and filters made from Infrasil or Suprasil are the optimum choice for all precision applications.

Suprasil

The quartz glasses produced by flame hydrolysis of SiCl4 combine excellent physical and optical properties. High-purity synthetic quartz has excellent optical properties from the UV to the NIR range.

Infrasil

Optical quartz glass is mostly used for applications from the . In addition, synthetically produced quartz glasses are the cost-effective alternative to Suprasil. The glass types Infrasil 301, 302 and 303, which are melted from natural raw materials, are particularly suitable for IR applications.

Applications

The specific requirements for optical components for complex applications in industry and science are particularly high. We recommend Infrasil and Suprasil glasses because of their excellent physical and optical properties. Some of the elementary parameters required here include homogeneity with minimal distortion (light transmission in the functional direction), excellent transmission, an optimum coefficient of thermal expansion and other mechanical, thermal or chemical characteristics as described above. In high-tech environments where these parameters and outstanding optical performance are essential, Suprasil or Infrasil quartz glass is the first choice for the manufacture of lenses, windows, filters or precision mirrors (scanners, deflection mirrors).

Suprasil optics

Suprasil / Infrasil

  • Suprasil: prisms, beam splitters, UV windows, mirrors
  • Infrasil: prisms, IR lenses, IR windows, mirrors
  • Mirrors and windows for laser diodes
  • Mirrors and windows for Nd:YAG lasers
  • Lenses, prisms and filters for the NIR
Suprasil as a substrate
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • 3D material, optically isotropic
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4610
  • Refractive index @ 632.8 nm: 1.4573
  • Refractive index @ 1064 nm: 1.4499
  • 3D material, optically isotropic
  • Fluorescence: slightly blue (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4610
  • Refractive index @ 632.8 nm: 1.4573
  • Refractive index @ 1064 nm: 1.4499
  • Fluorescence: slightly blue (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Streakiness according to MIL
  • Refractive index @ 532 nm: 1.4610
  • Refractive index @ 632.8 nm: 1.4573
  • Refractive index @ 1064 nm: 1.4499
  • Fluorescence: slightly blue (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • 3D material, optically isotropic
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • 3D material, optically isotropic
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • 3D material, optically isotropic
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Streakiness according to MIL
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • 3D material, optically isotropic
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • 3D material, optically isotropic
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.08
  • TBCS: < 0.015
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4607
  • Refractive index @ 632.8 nm: 1.4570
  • Refractive index @ 1064 nm: 1.4496
  • Fluorescence: free (Hg lamp 254 nm)
  • Synthetic quartz
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.16
  • TBCS: < 0.03
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4608
  • Refractive index @ 632.8 nm: 1.4571
  • Refractive index @ 1064 nm: 1.4497
  • Fluorescence: blue violet (Hg lamp 254 nm)
  • Natural quartz. The chemical composition and therefore the optical properties of natural quartz can vary.
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.35
  • TBCS: < 0.1
  • Degree of streaking according to DIN ISO 10110: 2/ -;5
  • Refractive index @ 532 nm: 1.4608
  • Refractive index @ 632.8 nm: 1.4571
  • Refractive index @ 1064 nm: 1.4497
  • Fluorescence: blue violet (Hg lamp 254 nm)
  • Natural quartz. The chemical composition and therefore the optical properties of natural quartz can vary.
  • Bubbles and inclusions according to DIN 58927: 0
  • Bubbles and inclusions according to DIN ISO 10110: 1/1*0.63 (< 6 kg)
  • TBCS: < 0.5
  • Degree of streaking according to DIN ISO 10110: not sp.
  • Refractive index @ 532 nm: 1.4608
  • Refractive index @ 632.8 nm: 1.4571
  • Refractive index @ 1064 nm: 1.4497
  • Fluorescence: blue violet (Hg lamp 254 nm)
  • Natural quartz. The chemical composition and therefore the optical properties of natural quartz can vary.

Material properties
